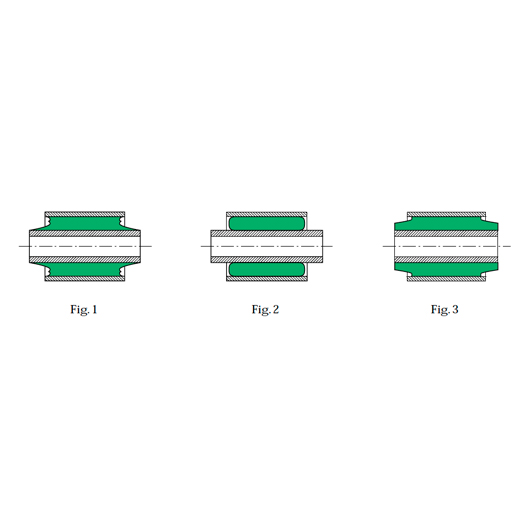

FLEXIBLOC (fig. 1) – FULLY BONDED
This is a bush made up of 2 concentric tubes between which of elastomer is bonded. Under the effect of external forces or torques, the relative movement of the tubes will cause an elastic deformation of the elastomer. By consulting the service conditions, a bush should be chosen which will remain within its elastic operational limits.
SILENTBLOC (fig. 2) – PRESTRESSED
This is a bush made up of 2 concentric tubes between which a ring of “adhérite®” elastomer is inserted by force. Under the effect of external forces or torques, the relative movement of the tubes will cause an elastic deformation of the elastomer. Above a certain value the adherite will slide in the tubes.
These simple bushes are considered to have lateral stops (fig. 3) when the elastomer protrudes from the external tube in the form of a support surface with various profiles.
The lateral stop only comes into operation when the bush is forced off centre by a radial load.This causes the stop to protrude, thus ensuring an “anti-noise” role at the limit of axial movement.
“PRESTRESSED BUSHES” with turned down sides:
For the same dimensions, this type of bush provides a radial load capacity which is superior to that of the classic “prestressed”.
In addition, versions of relatively short length permit conical movement more easily (reduced torque and increased angle).
CONICAL BUSH:
This takes the form of a rubber sleeve whose external surface is a truncated, and which surrounds a cylindrical internal part to which it adheres strongly by high radial expansion.
Assembly in pairs, in a housing made up of two truncated cones placed small end to small end.
By axial pressure, a high compression is created which ensures the external adherence of the rubber and causes lateral cushions to form at each end of the housing. These cushions ensure resistance to axial forces.
In this type of bush, one of the tubes is flanged.
FLUIDBLOC
This type of bush is intended to offer minimum resistance to torsion. The elastomer is bonded to only one of the armatures, and a suitable permanent lubricant ensures the lubrication between the elastomer and the second armature ensures a very low torsional resistance.
Seal sare provided at each end to prevent the lubricant from coming out and stop impurities from getting in.
Resistance to axial force is provided by a flange in the elastomer which bears against the side of the outer sleeve, the force being transmitted by a lateral washer.
A void bush is designed to have radial stiffness which are very different at 90° to each other.
