Seismic mountings.
Helicopter engine suspension systems.
Expansion joints.

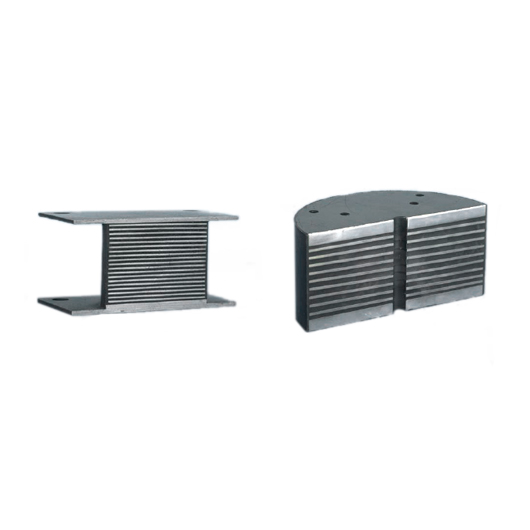

Laminated mountings
These assemblies can withstand high compression loads (along Oz): up to1,000 tons/sq.meter.
They can absorb shear deformation (along Ox and Oy) of 50 to 100% of their height.
Cylindrical or annular type assemblies can also withstand torsional displacement around axis Oz.
In rotation around axes Oy and Ox, these mountings enable angular or low amplitude rotation errors (approximately 1°).
Download PDF catalog
Related products
Laminated bushes
Laminated BUSHES use the same principle as other laminated bearings.
Laminated BUSHES use the same principle as other laminated bearings. Importance is primarily given to radial load capability along Ox and Oy which may be up to 100 tons.
Movement is allowed around an axis Oz or a centre of rotation O. Angular deflection is in the order of 30°.
Download PDF catalog
Decoupling washers
Linking and positioning of equipment while maintaining acoustic discretion
A decoupling washer is composed of:
– 2 bonded elastomer washers
– 1 stainless steel anti-shock washer
– 1 stainless steel preload spacer
Download PDF catalog
Laminated bearings
Are used to absorb very high axial loads of up to 150 tons.
Conical (fig. 1) or spherical (fig. 2) units are used to absorb very high axial loads of up to150 tons.
Angular movement around an axis (Oz in the case of the conical bearing) or a centre of rotation (O in the case of the spherical bearing) are in the order of ± 10°.
Download PDF catalog
Strafluid Hydraulic mountings
A hydraulic suspension can at the same time provide a low frequency damping function.
The progress in motor vehicle design and increased demand for comfort both in terms of vibration and sound-proofing has resulted inincreasingly demanding specifications for suspension systems.
PAULSTRA hydraulic mountings use an elastomer support device combined with an hydraulic system. The hydraulic system acts differentially and specifically in relation to the frequency range and the type of vibrational excitation incurred.
These mountings, due to a total integration of all components, are still compatible with standard sizes and are as easy to fit as conventional mountings.
