Oil platform anchoring points.
Helicopter rotor hub bearings.
Piping swivel joints.
Laminated bearings

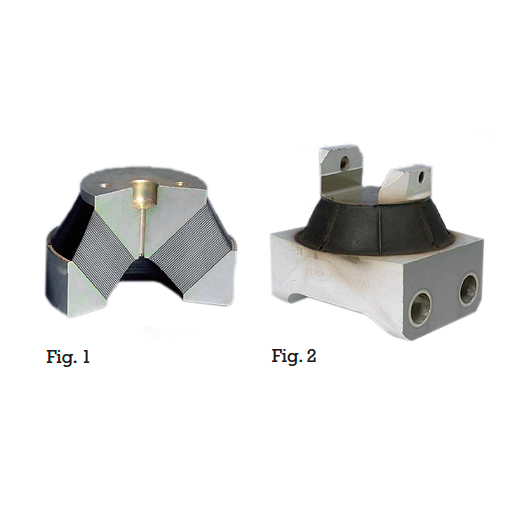

Conical (fig. 1) or spherical (fig. 2) units are used to absorb very high axial loads of up to150 tons.
Angular movement around an axis (Oz in the case of the conical bearing) or a centre of rotation (O in the case of the spherical bearing) are in the order of ± 10°.
Download PDF catalog
Related products
Decoupling washers
Linking and positioning of equipment while maintaining acoustic discretion
A decoupling washer is composed of:
– 2 bonded elastomer washers
– 1 stainless steel anti-shock washer
– 1 stainless steel preload spacer
Download PDF catalog
Anti-Vibration mountings for avionics and electronics
Applications range from vibration isolation to shock-protection of electronic apparatus.
Models are available in different elastomers: silicon, fireproofed silicon, fluorosilicon or neoprene, to meet the requirements of the main aeronautics standards (FAR 25 – AIR 7304 – MIL STD 810 – C 172 C -MAR 508 s.o.).
Covering a natural frequency range of 15 to 50 Hz, their applications range from vibration isolation to shock-protection of electronic apparatus and also aircraft fuselage and helicopter cockpit mountings.
Download PDF catalog
Flexible mountings for high loads MN 10 – MN 15
A load range of between 20 to 5000 kg.
– Vertical own frequencies under nominal loads of 5 to 7 Hz.
– Own lateral frequencies under nominal loads of 3 to 6 Hz.
– Stop after 10 mm of displacement. Maximum force on the top of 30 g
Download PDF catalog
Laminated mountings
These assemblies can withstand high compression loads.
These assemblies can withstand high compression loads (along Oz): up to1,000 tons/sq.meter.
They can absorb shear deformation (along Ox and Oy) of 50 to 100% of their height.
Cylindrical or annular type assemblies can also withstand torsional displacement around axis Oz.
In rotation around axes Oy and Ox, these mountings enable angular or low amplitude rotation errors (approximately 1°).
