Electronic special.

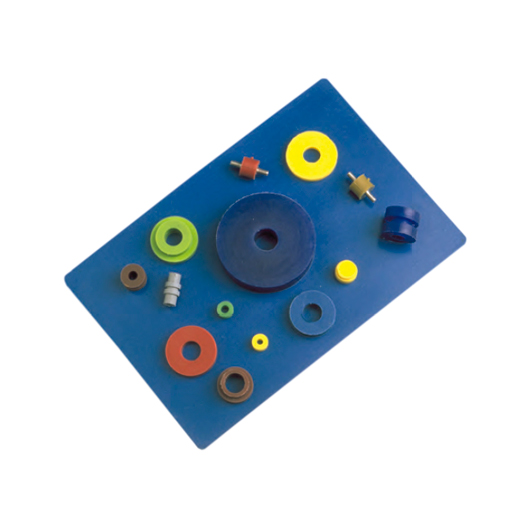

Elastomer moulded parts
These parts are usually supplied in VHDS (very high density silicone) rubber and the full reference should include:
– the letter S,
– the appropriate grade which corresponds:
– to the youngs modulus of the rubber under static compression in accordance with ASTM D945 (ref. 33 to 77),
– or to the stiffness measured on a part (ref. 16 to 25).
Download PDF catalog
Related products
Evidgom®
The EVIDGOM® support can be assimilated to two thick conical membranes.
The EVIDGOM mounting is formed from two thick conical membranes, joined at their bases to create a highly elastic mounting.
There are three variations:
– All rubber EVIDGOM.
– EVIDGOM with bonded fixing.
– EVIDGOM with a diamond or square mounting plate (fixing plate supplied as a separate kit).
Download PDF catalog
Cupmount
Está formado por un anillo de caucho adherido a dos armaduras metálicas.
The CUPMOUNT is made of rubber bonded to two metal reinforcements of truncated form.
– Interior reinforcement with tapped hole.
– External reinforcements with square base (4 holes).
Download PDF catalog
Stabiflex
It is formed by a rubber ring attached to two metal reinforcements.
The STABIFLEX mounting comprises a conical rubber section bonded between inner and outer metal parts.
– Centre axis with threaded hole.
– Square (4 holes) or diamond base (2 holes) with clearance hole.
– Bonded natural rubber, anti-slip bead.
– Cup to protect the rubber and distribute the load.
Download PDF catalog
S.C. Mounting
The S.C. mounting comprises an annular section bonded between the inner tube.
The S.C. mounting comprises an annular section bonded between the inner tube and outer housing.
The outer housing has a mounting flange (4 different types).
