Suspension of disc drives.
Protection of electronic components and printed circuit boards with very low mass in mobile or static environments.

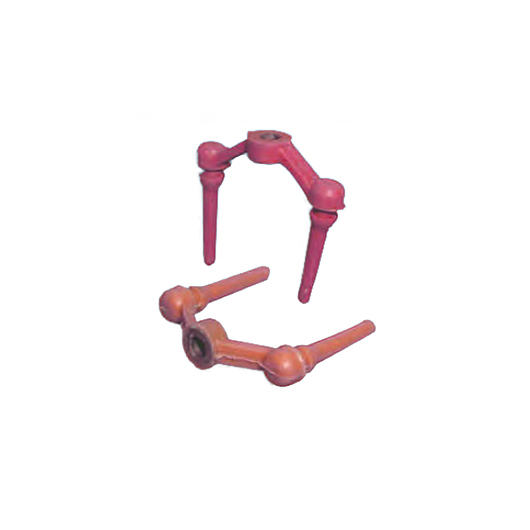

Disc drive suspensions
A silicone (VHDS) elastomer with a bonded metal insert. The legs have tangs which enable each leg to be pulled through mounting holes in the equipment. The suspended component can then be attached with an M3 screw through the insert. The tangs can be cut off after insertion.
Related products
Radiaflex®
The work in shear of these plots lends itself very well to the vibratory isolation.
– Metalwork: Mild steel, plated.
– Natural rubber, bonded, cylindrically shaped.
– Welded fixings: 5 styles (single sided threaded stud, single sided threaded hole, double threaded stud, double threaded holes, combination fixing).
In Europe, we often use different screw standards than our french standard.To better satisfy this need, Paulstra has created a new range TRadiaflex Europe. This range is available with the 4 usual welded fixings and with a new fixing: the threaded hole stop.
Download PDF catalog
S.T.C.
The S.T.C. mounting comprises a rubber ring bonded to a central tube.
The S.T.C. mounting comprises a rubber ring bonded to a central tube.
– Inner tube: mild steel.
– Bonded rubber in the form of a ring at the top with a collar below which is used for fixing.
Download PDF catalog
“Sandwich” Mounting
It consists of one or more layers of elastomer between two metal reinforcements.
The SANDWICH mounting comprises one or more layers of elastomer bonded to flat, parallel metallic plates. These mountings may be cylindrical or rectangular. They are designed to withstand very high compressive loads. The range of mechanical characteristics is governed by the hardness of the rubber and the number of intermediate metallic plates.
These mountings can support compression from 20 to 100 bars.
The metal plates usually receive a phosphate anti-corrosion treatment.
The elastomer is polychloroprene which provides a high resistance to atmospheric exposure.
Download PDF catalog
E1E931S / E1E4045
High damped silicon elastomer (VHDS).
