– Better than 90% isolation at 1.500 rpm(25 Hz).
– Constant height over wide load range.
– Stabilised characteristics during Service Life.
– Simple to fit.
– 400 hours protection against salt spray*.
– Design.
Download PDF catalog

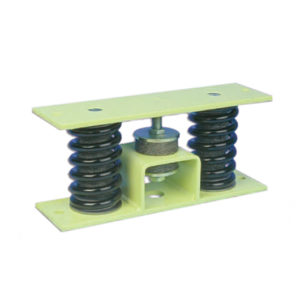

This range of mounts has one or two steel mounting plates depending on the model, one or several high strength steel springs, 2 light alloy rings and a stainless steel wire cushion in each spring.
All steel parts are painted.
Download PDF catalog
Maquinaria ascensores

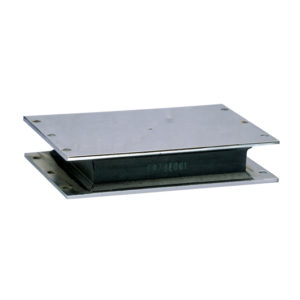

The SANDWICH mounting comprises one or more layers of elastomer bonded to flat, parallel metallic plates. These mountings may be cylindrical or rectangular. They are designed to withstand very high compressive loads. The range of mechanical characteristics is governed by the hardness of the rubber and the number of intermediate metallic plates.
These mountings can support compression from 20 to 100 bars.
The metal plates usually receive a phosphate anti-corrosion treatment.
The elastomer is polychloroprene which provides a high resistance to atmospheric exposure.
Download PDF catalog
– Low frequency and lateral stiffness shock absorbers working in compression with elastic retaining system.
– Steel bases. Spring: high-strength steel
– Damper pad: stainless steel 18/8
– Captive system (flexible limiter in stainless steel cushion)
Download PDF catalog
VIBRAFLOT y Losas flotantes
VIBRAFLOT® is an antivibration system consisting of the following elements:
– metallic box containing a low frequency spring;
– elastomer sheet to isolate high frequencies;
– system to fift the floating floor and set its height.
Download PDF catalog
Muros cortina

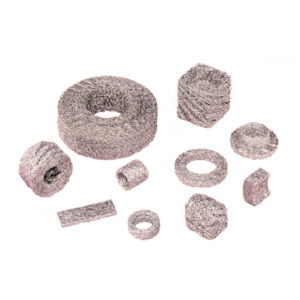

Metallic cushions are made from drawn, woven stainless steel wire that is compressed into a geometric shape. The Vibrachoc range has more than 1,000 standard metallic cushions of various sizes and characteristics.
As metallic cushions are easy to create, custom shapes and characteristics can be developed and produced on request.
Download PDF catalog

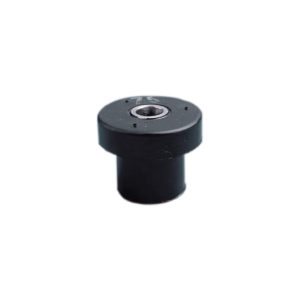

The S.T.C. mounting comprises a rubber ring bonded to a central tube.
– Inner tube: mild steel.
– Bonded rubber in the form of a ring at the top with a collar below which is used for fixing.
Download PDF catalog
Techos flotantes

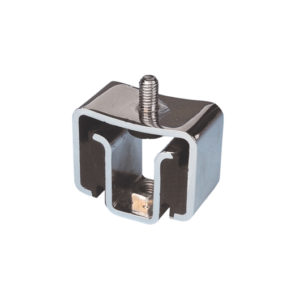

The TRAXIFLEX mounting comprises two metallic U armatures joined by two bonded rubber blocks.
It is available in two versions: male/female and female/female.
Download PDF catalog
VE isolators have a cylindrical stainless steel spring, a galvanized body, an elastomer noise reduction guide and steel rings or studs depending on the model.
The VE112 series has a steel cushion inside the spring.
Download PDF catalog
Armarios eléctricos
The 7002 damper has a satin finish treated AG3 casing and mounting plate, a stainless steel centre axis. A spring and stainless steel cushion provide the resilient elements. It has four Ø 5.2 mounting holes in the base and a tapped hole in the centre axis.
Download PDF catalog

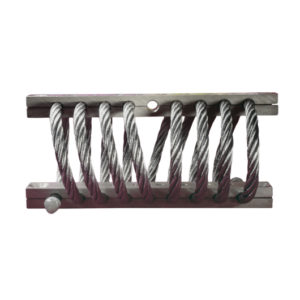

This range of mounts has a stainless steel cable wound between light alloy bars. The 8010 to 8060 versions are assembled using stainless steel clips and the 8080 to 8140 models have galvanised steel screws.
There are two or four mounting holes, per bar, smooth, counter sunk or tapped.
Download PDF catalog
Transformadores
This range of mounts has one or two steel mounting plates depending on the model, one or several high strength steel springs, 2 light alloy rings and a stainless steel wire cushion in each spring.
All steel parts are painted.
Download PDF catalog
Topes
There are several types of stops:

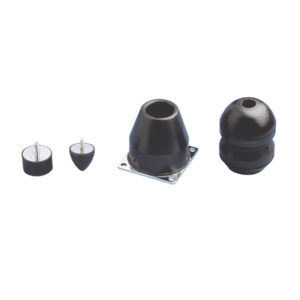

– Cylindrical or DIABOLO stops.
– Conical progressive stops.
– LEVAFLEX progressive stops with central cavity.
– EVIDGOM stops.
Download PDF catalog
Calderas y Grupos electrógenos

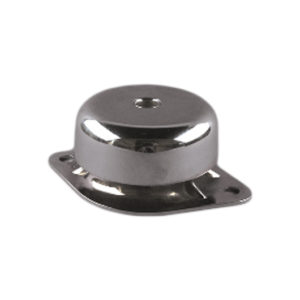

V118-MG and V318 mountings have cast iron cover and base with 4 mountings holes in the base and a central tapped hole in the cover.
The resilient elements are stainless steel wire mesh cushions:
– V118-MG and V318 have two cushions;
– V118-DG and V318-D have three cushions.
Download PDF catalog
The V1H-6000 and V1H-6100 mountings steel have a mounting plate, cover and swaged steel shaft.
This mounting is available with stainless steel or mild steel zinc plated metal work.
The resilient parts are stainless steel wire cushions.
The steel parts are zinc plated.
Download PDF catalog
Edificios
The SANDWICH mounting comprises one or more layers of elastomer bonded to flat, parallel metallic plates. These mountings may be cylindrical or rectangular. They are designed to withstand very high compressive loads. The range of mechanical characteristics is governed by the hardness of the rubber and the number of intermediate metallic plates.
These mountings can support compression from 20 to 100 bars.
The metal plates usually receive a phosphate anti-corrosion treatment.
The elastomer is polychloroprene which provides a high resistance to atmospheric exposure.
Download PDF catalog
Low frequency isolators-shock absorbers with supra lineal gradual stiffness due to flexible cushion characteristics (shock absorber) which is associated to steel spring (isolator).
